A Garage Door with a Pass Door: Our Portland Installation

A door inside the garage door changes how you use the entrance. In this Portland installation, D&L installed a three-layer insulated Amarr garage door with an integrated, steel-framed pass door. The smaller pedestrian opening lets someone walk into the garage without running the opener or raising the full overhead door.

Follow the project from assembly to the finished entrance in these photographs of our Portland installation.

Why have a walk-through in a garage door?

Not every visit to the garage is a vehicle trip. You may want to grab a bike, take out the trash or reach a washer and dryer. A pass door provides another way through the opening for those shorter visits.

It is a planning option worth discussing when a garage's access arrangement makes a separate pedestrian opening useful. Whether it makes sense for another property depends on the complete door assembly, opening, clearances and intended use. Our Portland garage door installation page explains how to start that conversation.

What we installed in Portland

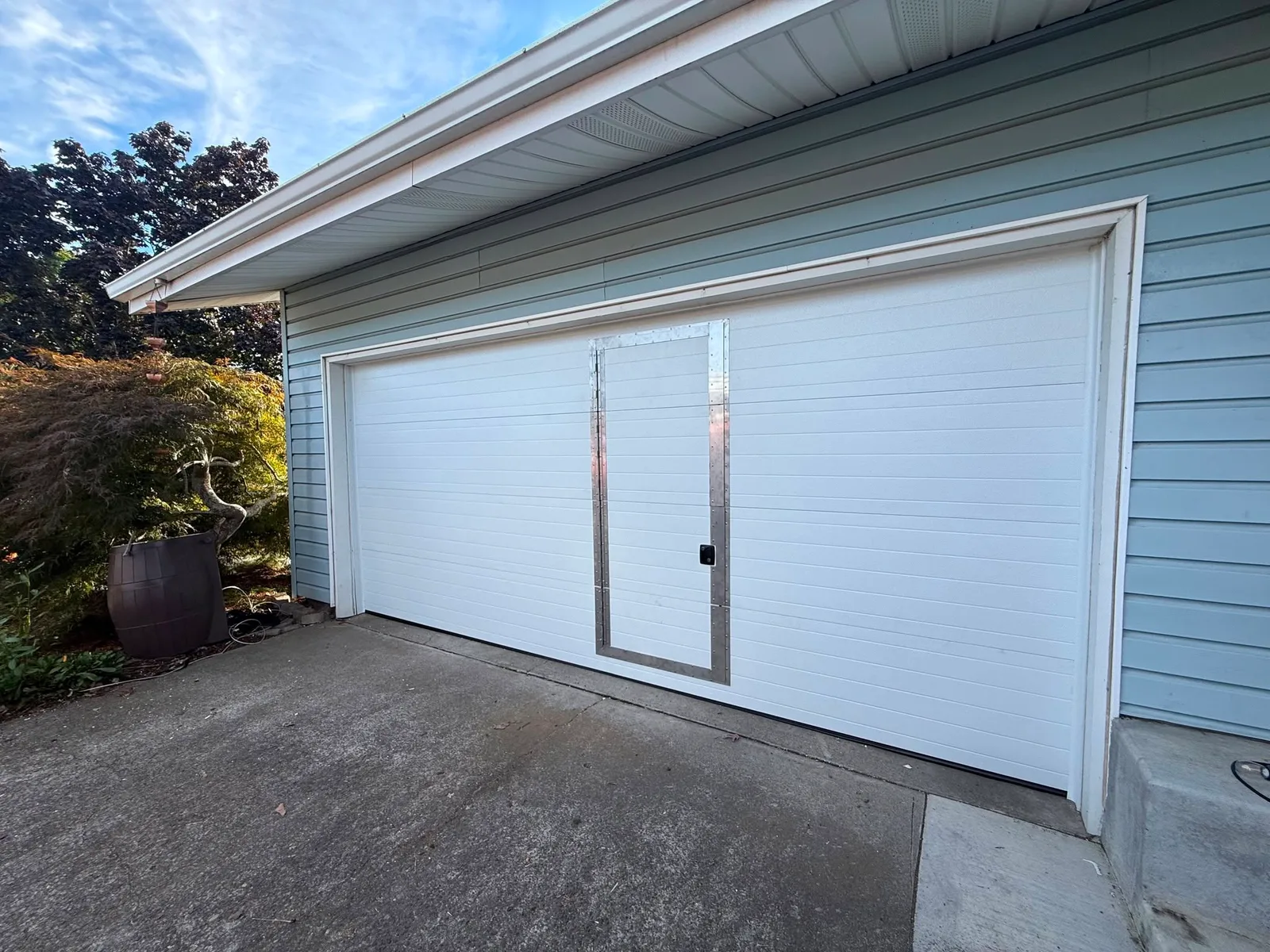

The finished door has white horizontal sections and a visible frame around the walk-through. The interior photographs show the pedestrian opening within the sectional door and its hardware. This is an integrated assembly: the pass door was built in as part of the door, rather than cut into an existing garage door on site.

For your own project, ask us to confirm the available model, insulation specification, dimensions and installation scope in your estimate.

A look at the installation and interior

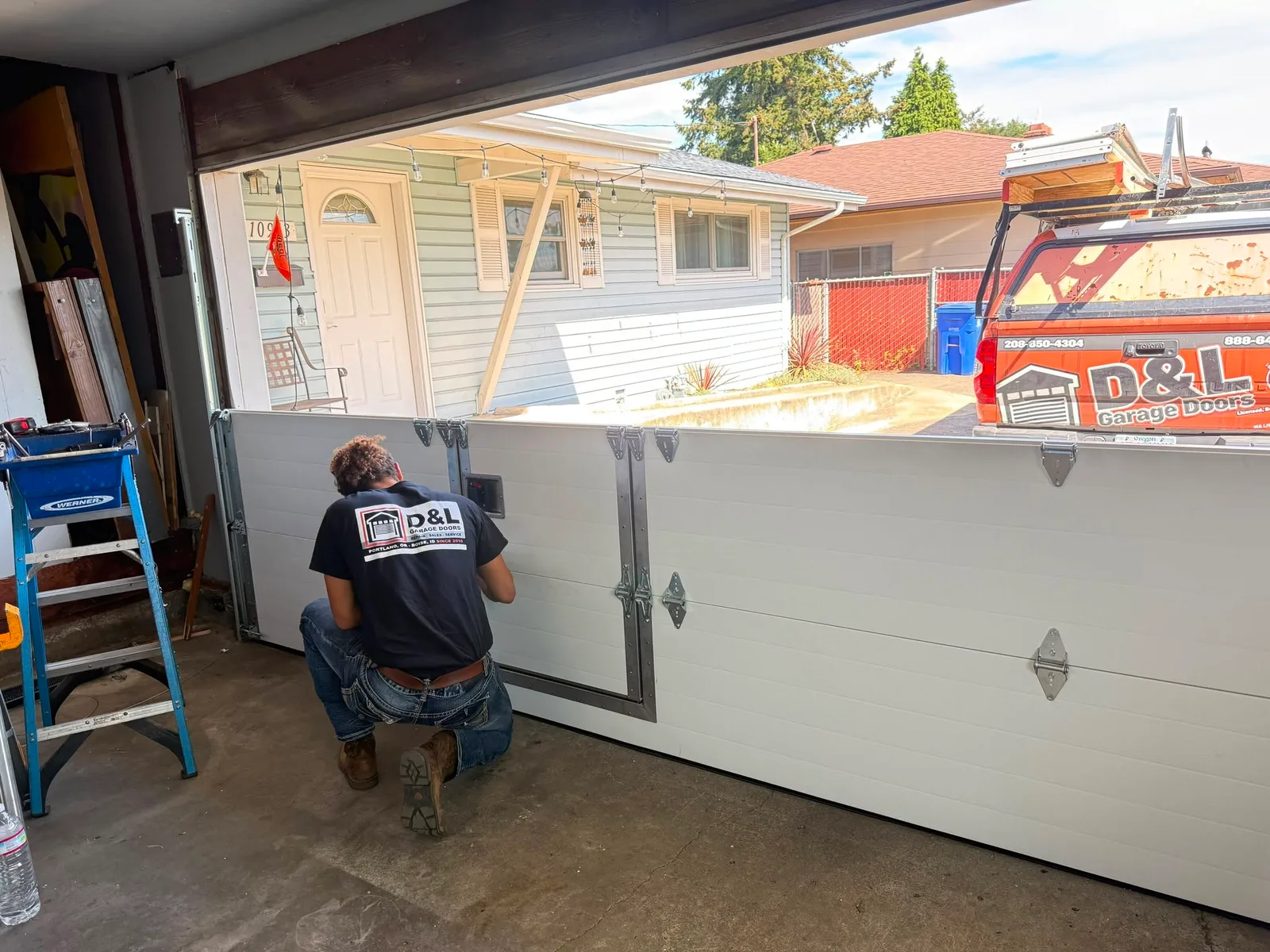

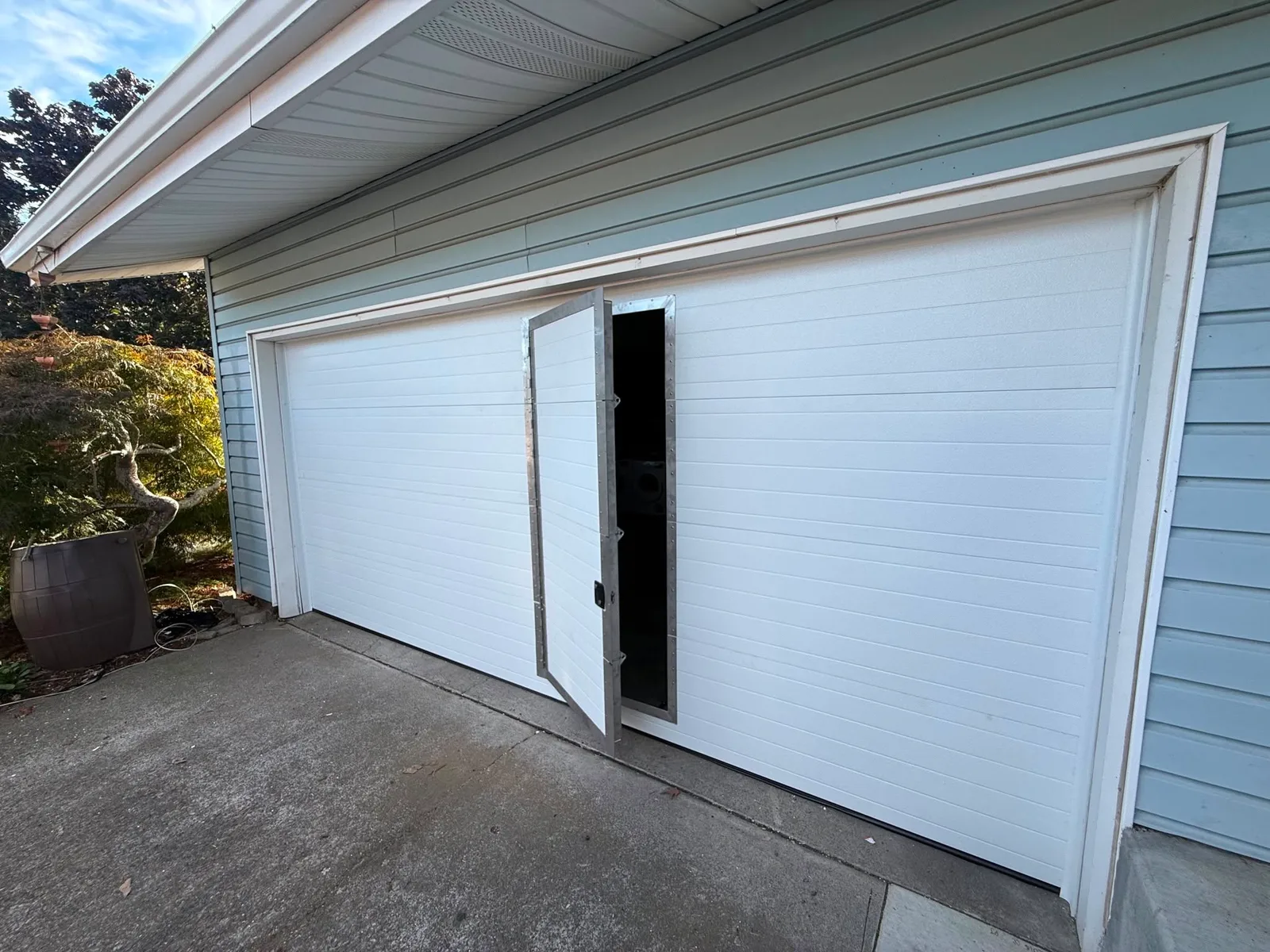

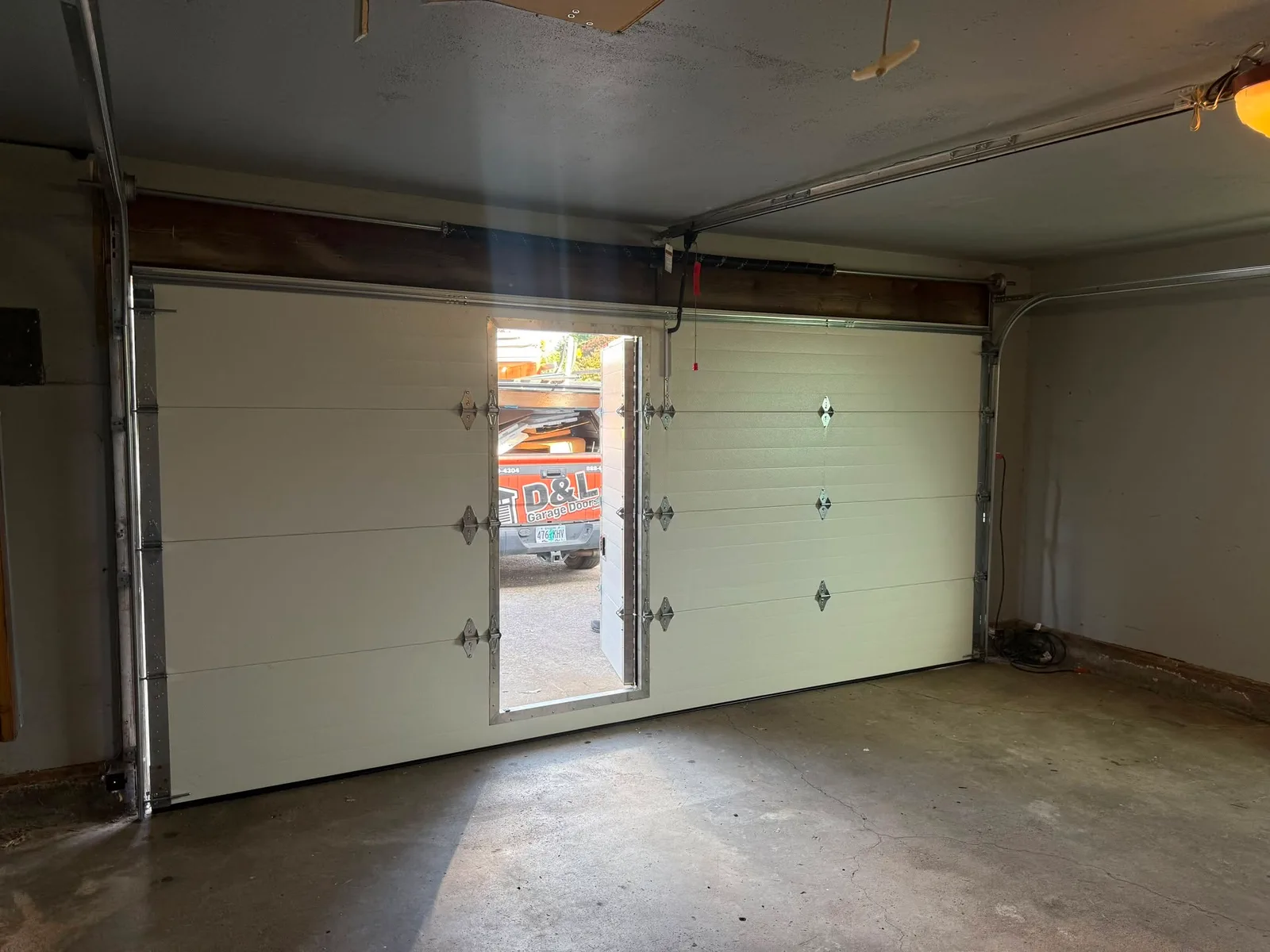

Our work photographs show a D&L technician assembling the door and working on the operating hardware. The completed interior view shows how the pedestrian door sits inside the larger door assembly. The paired open and closed photographs make the access arrangement easier to understand than a product name alone.

These images document professional work. They are not instructions for adjusting springs, altering panels or modifying tracks. The operating system carries substantial loads and must be assessed as a complete system.

What should you ask before choosing a pass door?

Start with the opening and everyday access. Explain how you enter the garage now, what you want to improve and whether a separate pedestrian entrance already exists. Discuss the passage width, threshold and access needs. Do not assume a pass door automatically meets accessibility or required-egress rules for a particular building.

Review the complete door configuration. Door size, construction, track arrangement, clearances and hardware must work together. A feature shown in one installation is not automatically available in every size, style or product line.

Ask about the operator and safety requirements. Confirm how the chosen assembly must be used with an opener, including the manufacturer's requirements for keeping the pedestrian door closed and any necessary interlock or compatible safety equipment.

Compare weather sealing and insulation as a system. Ask about the main door, pedestrian opening and perimeter seals. An insulated panel specification alone does not describe every source of air movement or heat transfer in a garage.

Get a written scope. Confirm the selected configuration, hardware, removal, installation, opener work, opening preparation and any separate electrical or structural work. Product availability and scheduling are confirmed for the actual project.

Is replacement the right next step?

You do not need a new garage door for every problem. If the goal is to fix a broken spring, damaged roller or unresponsive opener, start with Portland garage door repair. An inspection helps distinguish a repairable fault from a reason to replace the assembly.

If your main goal is a different entrance, a different appearance or a new configuration such as a pass door, explain that at the estimate stage. The team can review your existing opening and compare appropriate options. Our pricing guide explains why parts, access and the agreed scope matter when comparing quotes.

See options with the Portland team

Visit D&L Garage Doors at 6701 SE Foster Rd, Unit D, Portland, OR 97206, or call (503) 704-2654. Our showroom is at the back of the building, with parking-lot access from 67th Avenue. Walk-ins are welcome; arranging a visit can help the team prepare relevant samples.

We offer free estimates on new garage doors. Repair diagnostics and other inspections have separate terms. Bring photos of your opening and tell us what you would like to change so we can recommend the appropriate appointment.

Find shop directions and nearby service-area information on the Portland location page, or schedule with the Portland team. For a business property, use the Portland commercial door guide to discuss operating frequency, deliveries and access requirements.

Project source

See our original Portland project post on Facebook. Photos and project details: D&L Garage Doors.
